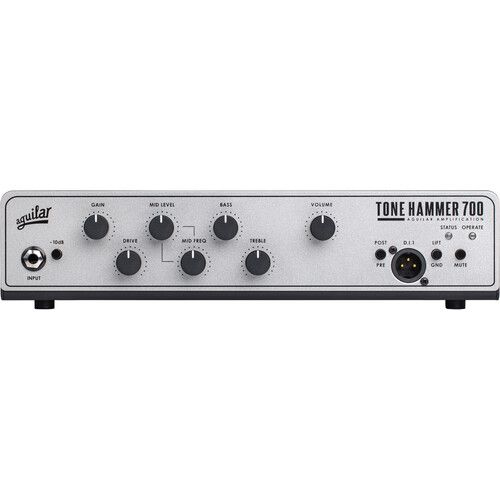

Preamp Section: Solid State

Power Section: Class D

Transformer: Switching mode power supply (SMPS)

EQ Section:

• Bass: +/- 17 dB @ 40 Hz
• Mid Level: +/- 16 dB
• Mid Frequency: 180 Hz – 1 kHz
• Treble: +/- 14 dB @ 4 kHz

Drive Control: Fully adjustable, featuring Aguilar’s proprietary AGS (adaptive gain shaping) circuit

Effects Loop: Series operation. Adds 6 dB of additional gain, making it useful for a broad range of effects units.

Inputs: One 1/4″ input jack, compatible with all active and passive basses

Speaker Outputs: One Neutrik Speakon speaker outputs

Balanced Output: XLR balanced output with pre/post EQ and ground lift switch

Tuner output

Cooling: Two high-quality whisper fans with thermal speed control
